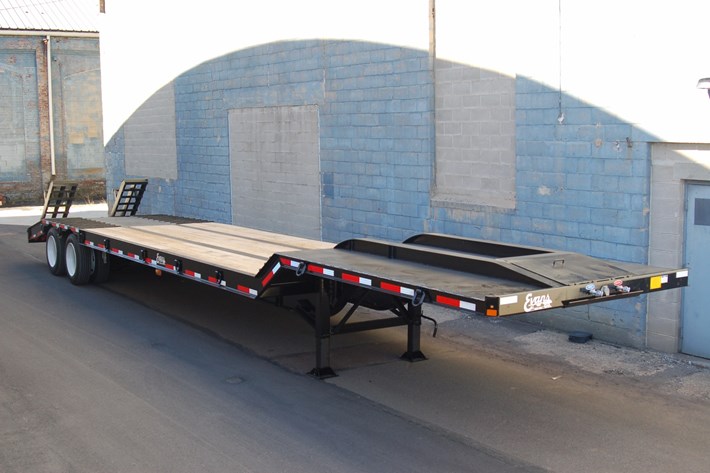

45' Fixed Neck Lowboy

The 45' Fixed Neck Lowboy is designed to haul a variety of heavy duty equipment.

Customize It

If the standard configuration shown below doesn’t meet your needs, no problem! We can customize any of our trailers to meet your specific requirements. Take a look at our trailer customization options and some of the custom trailers we’ve built for other customers.

General Specs

Tare Weight:

Approximately 16,000 lbs.

GVWR:

70,000 GVWR

Main Beams:

Fabricated

Fifth Wheel Height:

48"

Length:

45'

Flooring:

2" Oak

Rear Dock Height:

Approximately 41" unloaded

Side Rail:

10" channel

King Pin Location:

18"

Crossmembers:

8" I-beam on 24" centers

Width:

102"

Pick Up Plate:

5/16"

Flooring Over Tires:

Full width steel plate with traction bars over axles

Landing Gear

Landing Gear:

Two speed

Capacity:

55,000 lbs.

Running Gear

Wheels:

22.5 X 8.25

Tire Size:

255/70R 22.5

Suspension:

Spring-ride

Springs:

3-leaf

Axle Spacing:

49"

Axle Quantity:

(2)

Spindle Type:

Drum:

Outboard

Brake Chambers:

30/30

Slack Adjuster:

Automatic

Brake System:

2S/1M

Finish

Primer:

70% zinc

Top Coat:

Urethane

Color:

Black

Air & Electric

Light Package:

Flange mounted LED
